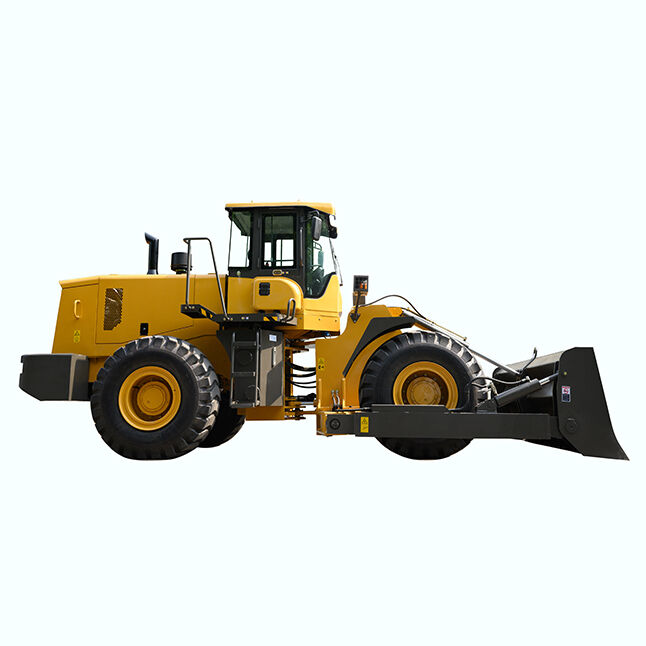

Wheel Bulldozer DL260

Name: Wheel Bulldozer DL260
Brand: Qingdao Hornquip Machinery Co., Ltd
SKU: DL260
Price: 550.00 USD
Availability: InStock

Détails de produit

autre nom:

bulldozer sur pneus

MOTEUR:

CUMMINS6CTA8.3-C260-II

Pneu:

23.5-25

Poids de fonctionnement:

21500kg

Puissance nominale:

194kw

Mettre en évidence:

Wheel Bulldozer DL260 with warranty

Construction Bulldozer heavy-duty

Description du produit

performance	Overall Dimension	7250×3600×3450mm
	Wheel base	3400mm
	Wheel track	2240mm
	Height of shovel blade	1000mm
	Operating weight	21500kg
	Max. lift height of dozer blade	1060mm
	Max. depth of dozer blade	400mm
	Width of shovel blade	3600mm
	Gradeability	25°
engine	Model of engine	CUMMINS 6CTA8.3-C260-II (EURO 2)
	Pattern	Turbo, in-line, water-cooled, 4-stroke, direct injection
	Rated power	194KW
	Rated rotary speed	2200r/min
	Max. torque	1500N.m
	Min. fuel consuming rate	220g/kw.h
	Total displacement	8.3L
Transmission system	Model of torque device	ZL60D-II
	Pattern	Powershift, countershaft
	Number of gear	4 forward,4 reverse
	Max. travel speed	40km/h
	Axle	Feicheng/Laiyang
	Main reducer type	Spiral bevel gear first class reduction
	Final reducer	Single stage planetary
	Tire size	23.5-25
Steering system	Pattern	Articulated, full hydraulic
	Min. turning radius(outside of bucket)	7268mm
	Max. turning angle	35°±1
Working hydraulic system	Working pump	CBGJ2100/1010/2063-0010
	Displacement	250L/min
	System working pressure	20.3MPa
	Distribution device model	32
	Pilot valve mode	DJS
brake	Brake system	Gas cap oil caliper disc on 4 wheels
brake	Parking brake	Hand operated caliper disc
